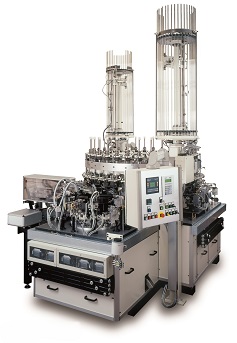

Syringe forming machine FS 32 with automatic tube feeder

Vertical 32/12/12-heads indexing motion machine for the production of syringe barrels from glass tube

Technical data

Operating range
Working range of chucks: Ø 6 – 22 mm
other working ranges on request

Length of finished syringe barrel:
max. 115 mm total length
higher total length on request

For the production of tubular glass syringe barrels with all main types of tips, such as luer type or staked needle type.

Output
Up to 3.600 pieces per hour depending on the machine configuration and the diameter of the glass (max. mechanical speed).

Dimensions and weight
Length: 3.700 mm
Width: 2.300 mm
Height with tube feeder: 3.350 mm
Weight: 5.000 kg

Consumption
Consumption values for gas, air, oxygen and hydrogen depend on the glass tube and the type of gas used. Detailed information will be supplied on request.

Automatic tube feeder
Magazine above the chucks with a total storage capacity of 32 glass tubes.
Alternative: 2 tube feeders RZ with magazine

Features
Capable of producing a complete syringe body of high precision including luer tip, finger grip and bypass
High-Speed Index Drive HSI

Option
Laser thermal shock cutting
Tube loader type RLGH for feeding glass tubes into the magazine directly from tubing bundle
Version for production of dropper pipettes
Version for production of cartridges

Further details on request
